Confidently Pour High Walls and Columns
With multiple vertically aligned sensors, you can monitor pressure distribution throughout the formwork. This allows you to:
- Adjust pouring speed in real time
- Maintain structural integrity
- Achieve superior concrete quality
-

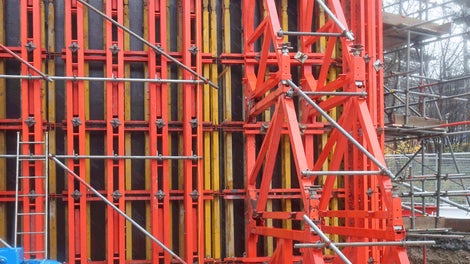

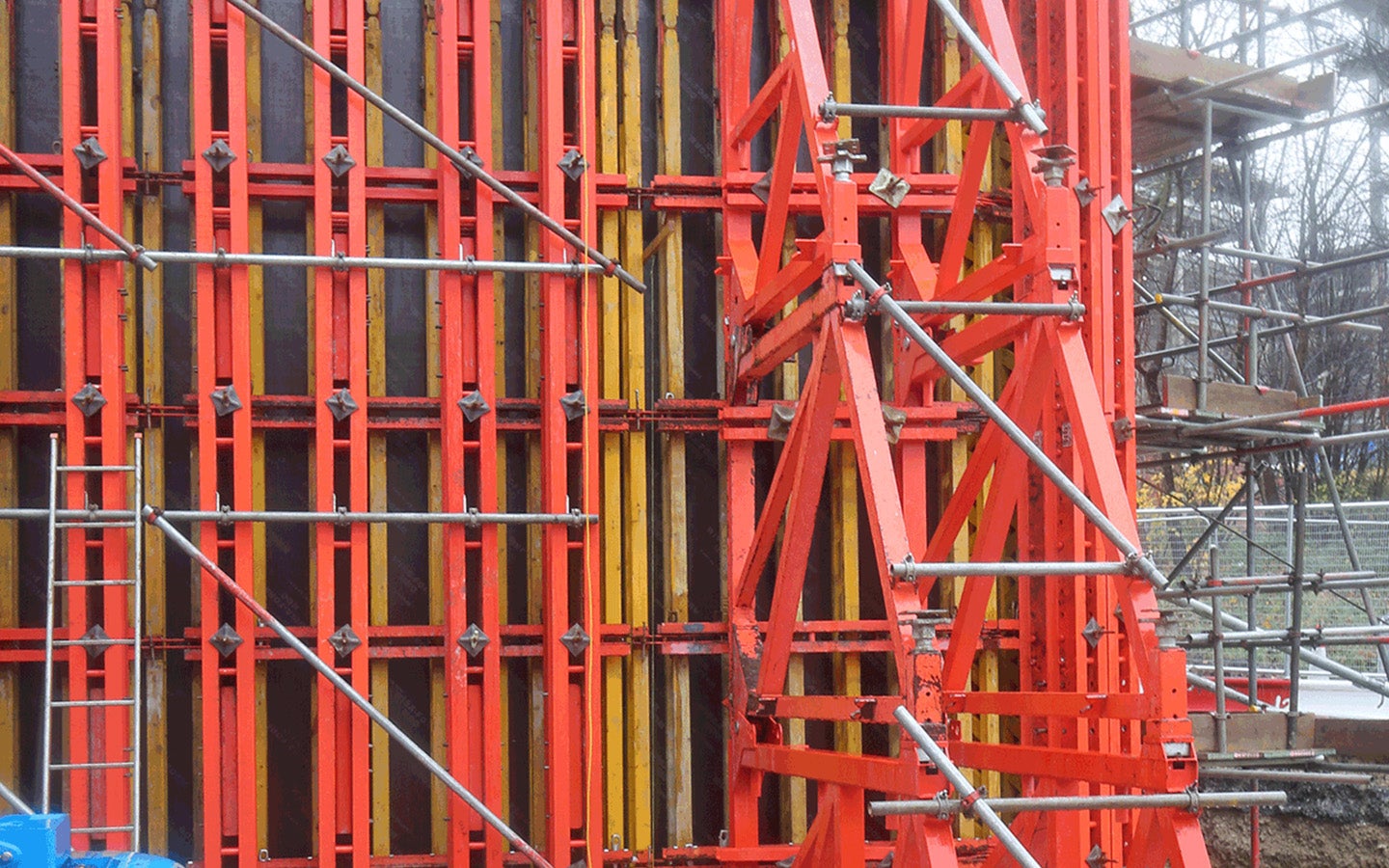

Secure Single-Sided Formwork Applications
Single-sided formwork demands extra caution. Our sensors provide the data you need to:
- Protect adjacent structures
- Maintain ideal pouring speed
- Ensure safe and stable formwork performance
-
Safe Use of Self-Compacting Concrete (SCC)
SCC offers many advantages, but it also comes with specific pressure challenges. Our system helps you:
- Comply with SCC pressure regulations
- Monitor and control pressure precisely
- Avoid costly formwork failures
-
Controlled Concreting from Below
When pumping concrete from below, pressure can rise unpredictably. Our solution lets you:
- Measure actual pressure in real time
- Balance pump speed and pressure
- Prevent unexpected stress on the formwork

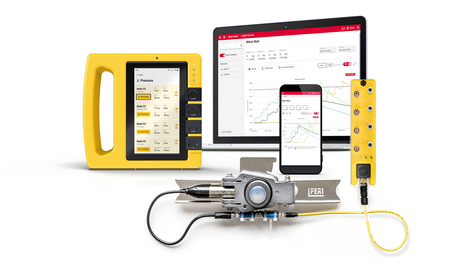

Product features
-

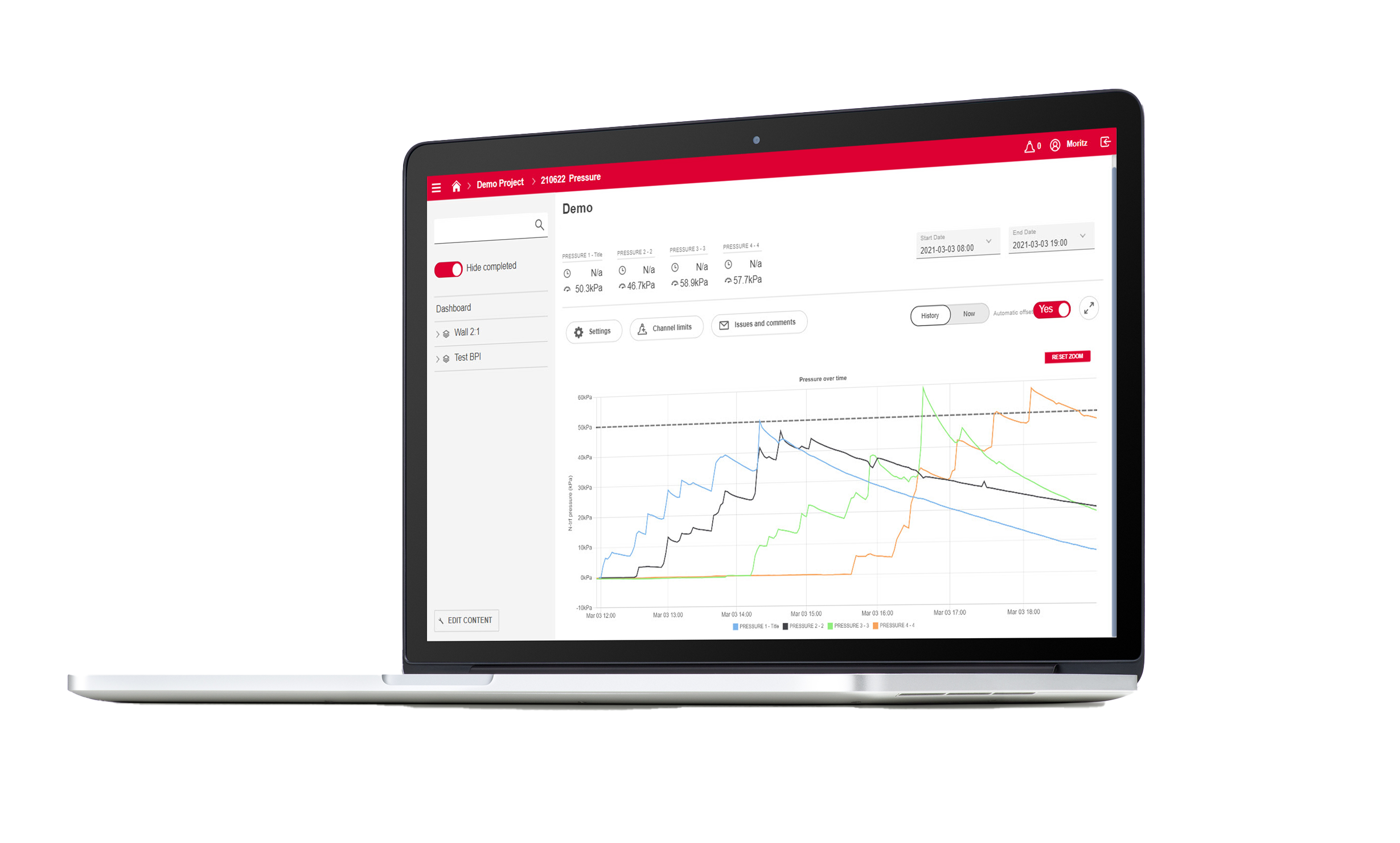

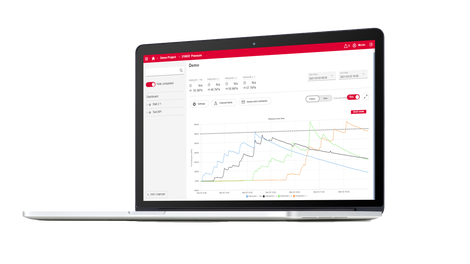

Intuitive dashboard with alarm function
Monitor sensor data in real time and analyze it in a well-organized graph. Also receive notifications for predefined, critical concrete pressure conditions.
-

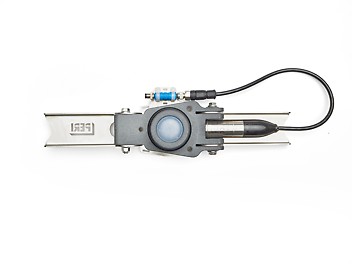

Precise pressure sensors
The body of the reusable sensors is 3D printed and extended with two stainless steel levers, which serve to protect the actual sensor and as a disassembly aid.
The concrete in the formwork exerts pressure on the central membrane of the sensor. With each addition of concrete, this pressure increases continuously until the concrete begins to harden. -
Simple assembly

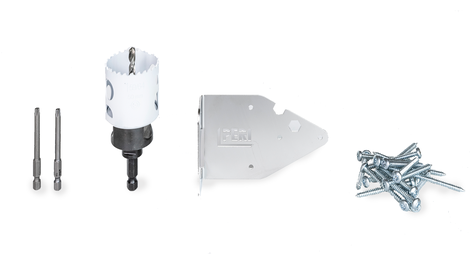

For quick and easy installation, the PREMO pressure sensors are supplied with a comprehensive mounting kit.
A few steps to successful measurement
- Mounting of the sensors
Attach the sensors to the formwork by inserting them into previously drilled holes and fix them to the formwork panel with screws. - Placing the formwork
Place the formwork with the pre-mounted sensors at the desired position. - Commissioning of the sensors
Connect the sensors to a "measuring node". This automatically sends the data to the hub which forwards it to the web application. - Concreting and analyzing
The concreting starts, control the concreting speed via the formwork pressure. The data can be analyzed in real time on the hub and in the web app. Limits can be defined in the web app, making analysis even easier.
Project References
-

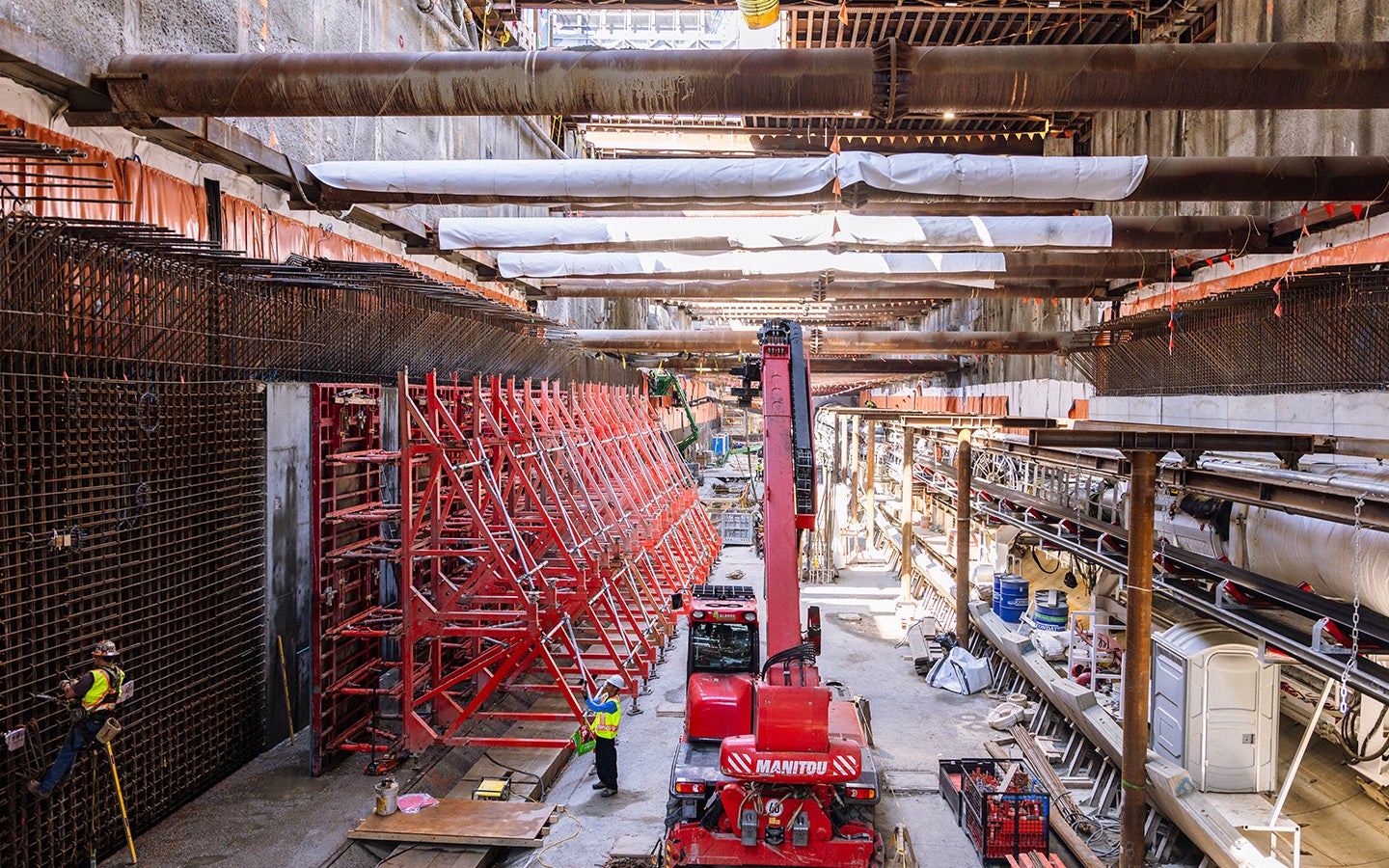

A 30% Reduction in Concrete Pour Time with Pressure Sensors
Broadway Subway Project (Vancouver, Canada) -
Significant Acceleration of 6m Winter PourRegent Street (Leeds, UK)
