Avoid Cracks and Spalling with the Right Water Content
Control water content in fresh concrete to prevent capillary pores and ensure durability.
- Prevent frost sensitivity and spalling
- Protect reinforcing steel from corrosion
- Avoid strength loss due to unhydrated cement
-
Determine the W/C Value in Just a Few Minutes
Use SONO to quickly assess water content and calculate the water-cement ratio.
- Get results in 1–2 minutes with 4–5 measurements
- Save time compared to traditional Darr method (approx. 30 min)
- Improve efficiency on the construction site
-
Meet High Concrete Requirements
Optimize the w/c ratio to influence concrete structure and performance.
- Control cement gel, capillary, and air voids
- Enhance load-bearing capacity and durability
- Improve visual quality of hardened concrete
-
Quality Control in Concrete Production and Testing Laboratory
Ensure consistent results with innovative TRIME® radar technology.
- Save time in lab and on-site testing
- Achieve reliable water content measurements
- Support high-quality concrete production
-
Manage Water and Cement in Fresh Concrete
Balance workability and quality with precise w/c ratio control.
- Avoid unnecessary cement overdosing
- Reduce CO₂ emissions and material costs
- Maintain consistent concrete quality
Product features
-
TRIME® radar technology
SONO works on the basis of radar technology with state-of-the-art TRIME®TDR technology (Time-DomainReflectometry). This novel technology has been validated in many years of cooperation with several scientific institutions.

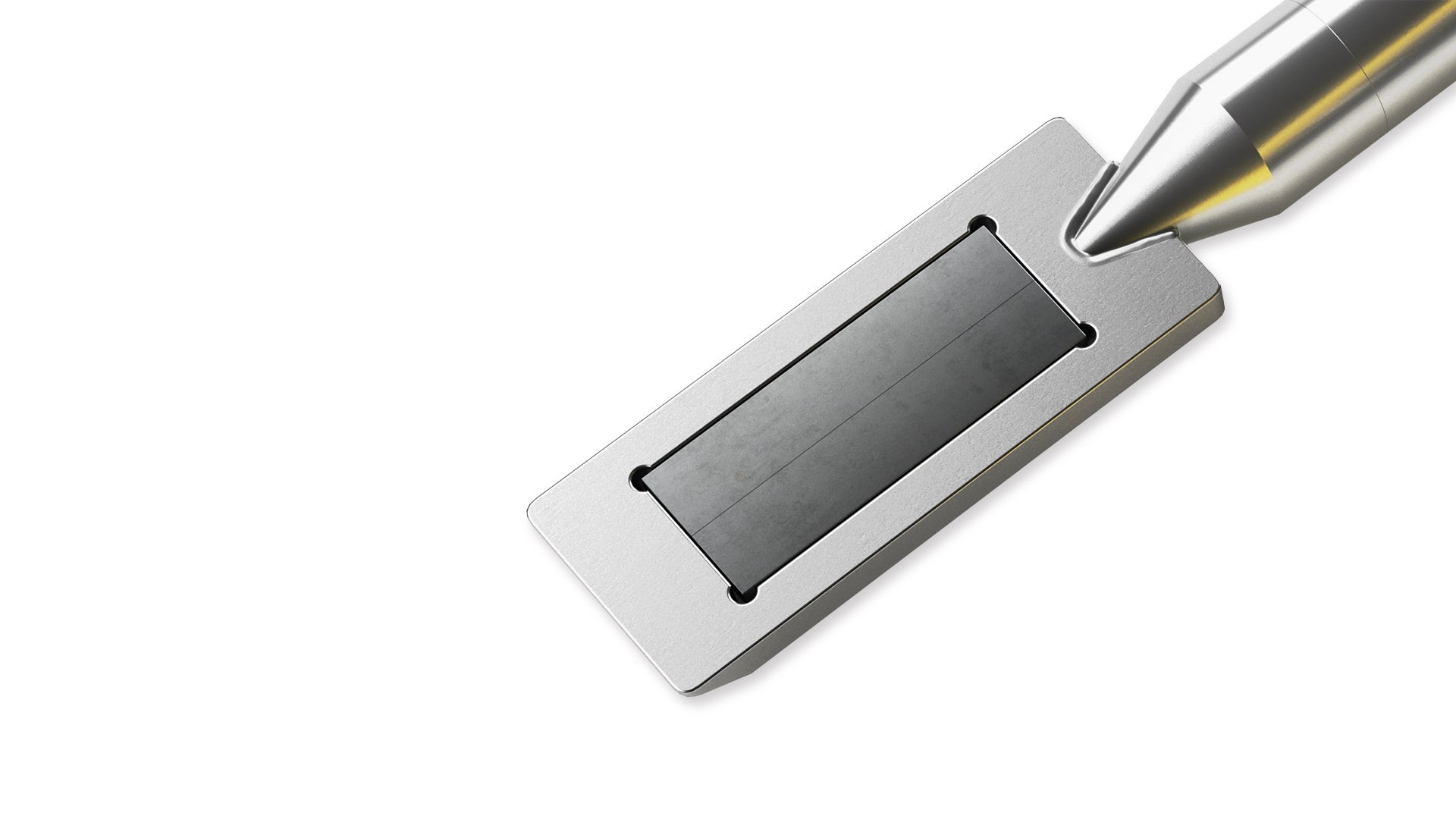

In the so-called time-of-flight measurement, a radar pulse is used to determine the volumetric water content. The basic technology is successfully used for a wide variety of moisture measurements. For moisture measurement in fresh concrete, the method was further developed accordingly. The special probe and the associated handheld meter now offer a simple solution for reliable results on the construction site. -
Scientifically validated
The technology has been thoroughly investigated and validated as part of a publicly funded research project (IGF 21322N)¹.
¹ Vergleichmäßigung der Betonqualität durch neue Prüfkonzepte und -methoden für eine zielsichere Bestimmung des Wassergehalts am Frischbeton, IGF-Vorhaben Nr. 21322N, 30.06.2024.
A few steps to successful measurement
- Set Concrete
Before starting the measurement, three parameters must be entered: the bulk density, the characteristics of the concrete mix design, and the general set. In most cases, the data can be taken from the delivery bill, are known, or can be determined quickly. - Measurement

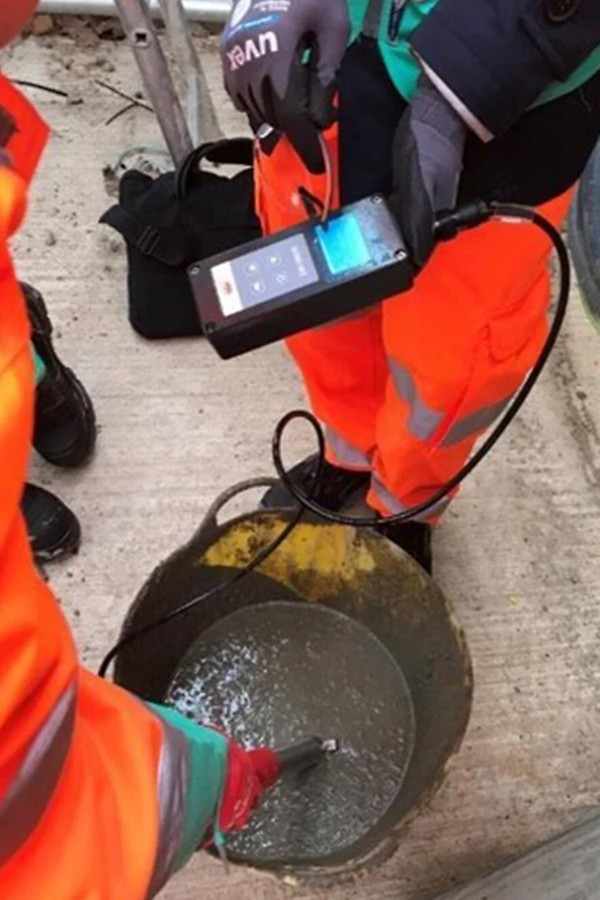

The SONO analyzer can be used to sample concrete with a slump from F2 to F6. A commercially available 12-liter plastic bucket filled approximately ¾ full with concrete is ideally suited for performing the measurement. The best measurement results are obtained with four to five individual measurements at different positions around the bucket. - Results
The handheld unit displays the water content in the fresh concrete.
Project References
-

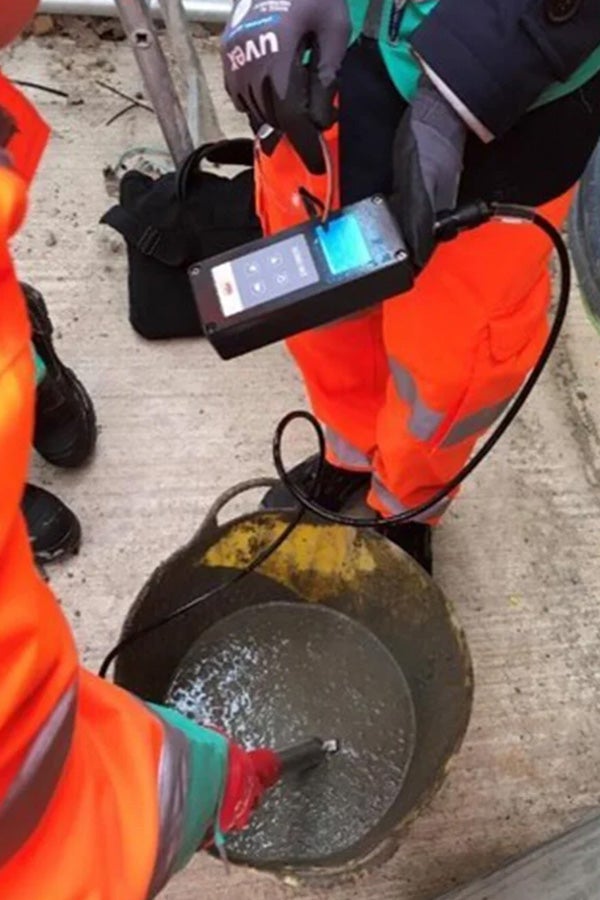

Real-Time Water-Cement Ratio Testing Enhances Tunnel Lining in LondonThames Tideway Chelsea Embankment (London, England)
