Time-saving forming with MX tie technology as well as the best concrete finishes

MAXIMO Panel Formwork

The cost-effective system with MX tie technology simultaneously provides the best concrete finish.

Developed by PERI, the MX tie technology with one-sided tie installation greatly accelerates formworking operations. At the same time, MAXIMO is significantly faster than conventional panel formwork despite the lower site personnel requirements. Due to the innovative tie technology and optimised number of tie points, working time values for the system are verifiably up to 50% less. In addition, the centrally arranged tie points result in a regular joint and tie pattern both horizontally and vertically.


  • Faster tie installation

    through the one-sided tie technology without spacer tubes and cones

  • Minimum of anchors

    through the optimized tie point arrangement

  • Improved concrete finish

    through the neat joint and tie arrangement

MAXIMO in action

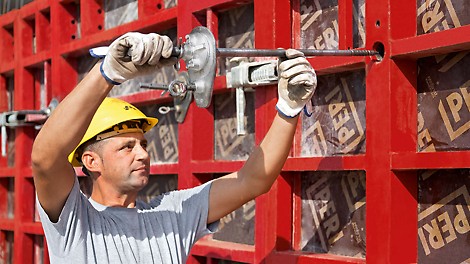

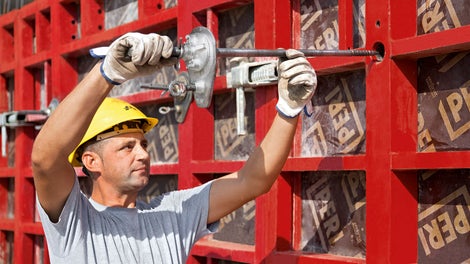

  • The special MX tie is installed from one side only and is used without spacer tubes and cones. As a result, both material requirements and costs are reduced as well as saving time.
    Faster tie installation

    The special MX tie is installed from one side only and is used without spacer tubes and cones. As a result, both material requirements and costs are reduced as well as saving time.

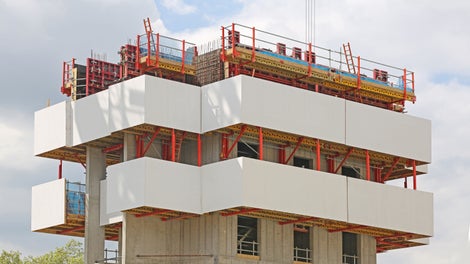

  • MAXIMO Panel Formwork and the RCS Rail Climbing System we used to achieve this clean concrete finish whilst at height.
    Improved concrete finish

    The defined arrangement of individual MAXIMO panels allows the visually appealing design of concrete surfaces with a clean concrete finish without any impressions due to unused tie holes or the occurrence of concrete bleeding through non-sealed tie points.

Additional Benefits

Product Data Sheet

Variations

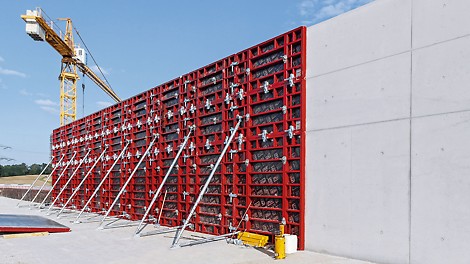

  • Photo of the PERI Maximo Formwork system being used to form a concrete wall on a construction site.
    MAXIMO 300 / MAXIMO 360

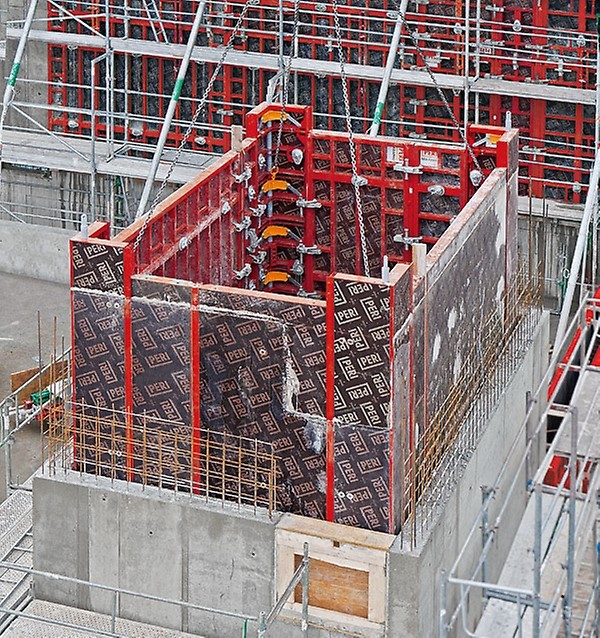

    MAXIMO Panels as well as internal corners and shaft elements are available with heights of 3.00 m and 3.60 m, too. These additional panel heights are available on request and guarantee additional time savings for larger floor heights, for example, in high-quality residential construction or even for underground garages. The 3.00 m high panels only require 2 anchors which ensures further savings of time. The MX 18 Anchor System is used for wall thicknesses of up to 60 cm.

Downloads

See our brochures below

Interested in using MAXIMO for your project?

Call us on +1 905 - 951 -5400 to discuss your requirements further.
